一、前言
在我们开发当中经常需要向特定URL地址发送Http请求操作,在.net core 中对httpClient使用不当会造成灾难性的问题,这篇文章主要来分享.net core中通过IHttpClientFactory 工厂来使用HttpClient的正确打开方式。
二、HttpClient使用中的那些坑
2.1 错误使用
using(var client = new HttpClient())
我们可以先来做一个简单的测试,代码如下:
public async Task<string> GetBaiduListAsync(string url){var html = "";for (var i = 0; i < 10; i++){using (var client = new System.Net.Http.HttpClient()){var result=await client.GetStringAsync(url);html += result;}}return html;}

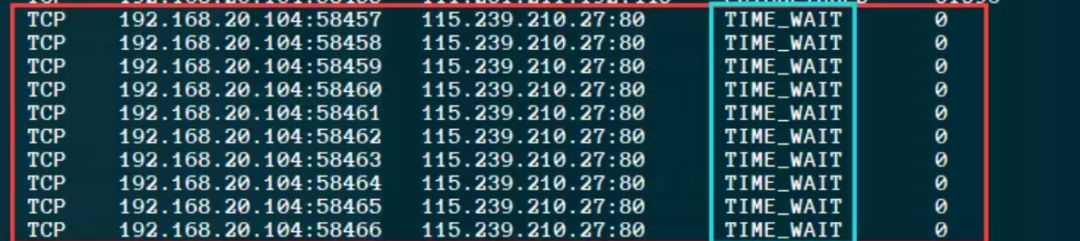

运行项目输出结果后,通过netstate查看下TCP连接情况:虽然项目已经运行结束,但是连接依然存在,状态为" TIME_WAIT"(继续等待看是否还有延迟的包会传输过来;默认在windows下,TIME_WAIT
状态将会使系统将会保持该连接 240s。在高并发的情况下,连接来不及释放,socket被耗尽,耗尽之后就会出现喜闻乐见的一个错误:
错误原因:
对象所占用资源应该确保及时被释放掉,但是,对于网络连接而言,这是错误的,原因有如下:
网络连接是需要耗费一定时间的,频繁开启与关闭连接,性能会受影响;
开启网络连接时会占用底层socket资源,但在HttpClient调用其本身的Dispose方法时,并不能立刻释放该资源,这意味着你的程序可能会因为耗尽连接资源而产生灾难性的问题。
对于上面的错误原因,大家可能会想到使用静态单例模式的HttpClient,如下:
private static HttpClient Client = new HttpClient();
静态单例模式虽然可以解决上面问题,但是会带来另外一个问题:
DNS变更会导致不能解析,DNS不会重新加载,需要重启才能变更(有兴趣的大佬可以去尝试一下)
三、正确使用及源码分析

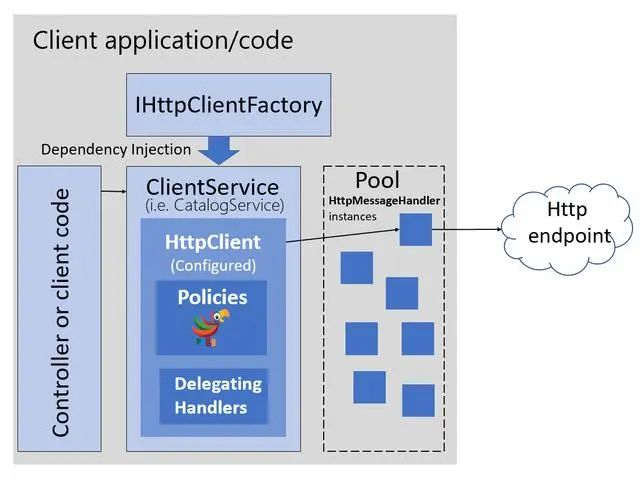

HttpClientFactory 以模块化、可命名、可配置、弹性方式重建了 HttpClient 的使用方式:由 DI 框架注入 IHttpClientFactory 工厂;由工厂创建 HttpClient 并从内部的 Handler 池分配请求 Handler。
.net core 2.1 开始引入了IHttpClientFactory 工厂类来自动管理IHttpClientFactory 类的创建和资源释放,可以通过Ioc 注入方式进行使用,代码如下:
services.AddControllers();
services.AddHttpClient();
调用代码如下:
private readonly IHttpClientFactory _clientFactory;public FirstController(IHttpClientFactory clientFactory)
{_clientFactory = clientFactory;
}/// <summary>
///
/// </summary>
/// <param name="url"></param>
/// <returns></returns>
public async Task<string> GetBaiduAsync(string url)
{var client = _clientFactory.CreateClient();var result = await client.GetStringAsync(url);return result;
}
代码中通过IHttpClientFactory
中的CreateClient()
方法进行创建一个HttpClient 对象,但是没有看到有释放资源的动作,那它是怎么释放的呢?我们来看看它的主要源代码
/// <summary>
/// Creates a new <see cref="HttpClient"/> using the default configuration.
/// </summary>
/// <param name="factory">The <see cref="IHttpClientFactory"/>.</param>
/// <returns>An <see cref="HttpClient"/> configured using the default configuration.</returns>
public static HttpClient CreateClient(this IHttpClientFactory factory)
{if (factory == null){throw new ArgumentNullException(nameof(factory));}return factory.CreateClient(Options.DefaultName);
}public HttpClient CreateClient(string name)
{if (name == null){throw new ArgumentNullException(nameof(name));}var handler = CreateHandler(name);var client = new HttpClient(handler, disposeHandler: false);var options = _optionsMonitor.Get(name);for (var i = 0; i < options.HttpClientActions.Count; i++){options.HttpClientActions[i](client);}return client;
}public HttpMessageHandler CreateHandler(string name)
{if (name == null){throw new ArgumentNullException(nameof(name));}var entry = _activeHandlers.GetOrAdd(name, _entryFactory).Value;StartHandlerEntryTimer(entry);return entry.Handler;
}
代码中可以看到创建HttpClent
时会先创建HttpMessageHandler
对象,而CreateHandler 方法中调用了StartHandlerEntryTimer
方法,该方法主要时启动清理释放定时器方法,核心代码如下:
public DefaultHttpClientFactory(IServiceProvider services,IServiceScopeFactory scopeFactory,ILoggerFactory loggerFactory,IOptionsMonitor<HttpClientFactoryOptions> optionsMonitor,IEnumerable<IHttpMessageHandlerBuilderFilter> filters){if (services == null){throw new ArgumentNullException(nameof(services));}if (scopeFactory == null){throw new ArgumentNullException(nameof(scopeFactory));}if (loggerFactory == null){throw new ArgumentNullException(nameof(loggerFactory));}if (optionsMonitor == null){throw new ArgumentNullException(nameof(optionsMonitor));}if (filters == null){throw new ArgumentNullException(nameof(filters));}_services = services;_scopeFactory = scopeFactory;_optionsMonitor = optionsMonitor;_filters = filters.ToArray();_logger = loggerFactory.CreateLogger<DefaultHttpClientFactory>();// case-sensitive because named options is._activeHandlers = new ConcurrentDictionary<string, Lazy<ActiveHandlerTrackingEntry>>(StringComparer.Ordinal);_entryFactory = (name) =>{return new Lazy<ActiveHandlerTrackingEntry>(() =>{return CreateHandlerEntry(name);}, LazyThreadSafetyMode.ExecutionAndPublication);};_expiredHandlers = new ConcurrentQueue<ExpiredHandlerTrackingEntry>();_expiryCallback = ExpiryTimer_Tick;_cleanupTimerLock = new object();_cleanupActiveLock = new object();}// Internal for testsinternal void ExpiryTimer_Tick(object state){var active = (ActiveHandlerTrackingEntry)state;// The timer callback should be the only one removing from the active collection. If we can't find// our entry in the collection, then this is a bug.var removed = _activeHandlers.TryRemove(active.Name, out var found);Debug.Assert(removed, "Entry not found. We should always be able to remove the entry");Debug.Assert(object.ReferenceEquals(active, found.Value), "Different entry found. The entry should not have been replaced");// At this point the handler is no longer 'active' and will not be handed out to any new clients.// However we haven't dropped our strong reference to the handler, so we can't yet determine if// there are still any other outstanding references (we know there is at least one).//// We use a different state object to track expired handlers. This allows any other thread that acquired// the 'active' entry to use it without safety problems.var expired = new ExpiredHandlerTrackingEntry(active);_expiredHandlers.Enqueue(expired);Log.HandlerExpired(_logger, active.Name, active.Lifetime);StartCleanupTimer();}// Internal so it can be overridden in testsinternal virtual void StartHandlerEntryTimer(ActiveHandlerTrackingEntry entry){entry.StartExpiryTimer(_expiryCallback);}
从微软源码分析,HttpClient继承自HttpMessageInvoker,而HttpMessageInvoker实质就是HttpClientHandler。
HttpClientFactory 创建的HttpClient,也即是HttpClientHandler,只是这些个HttpClient被放到了“池子”中,工厂每次在create的时候会自动判断是新建还是复用。(默认生命周期为2min)。希望这篇文章对你有帮助,如果对你有帮助请点个推荐,感谢!
