上一篇文章完善了项目中的代码,接入了Swagger。本篇主要使用Entity Framework Core完成对数据库的访问,以及使用Code-First的方式进行数据迁移,自动创建表结构。
数据访问
在.EntityFrameworkCore
项目中添加我们的数据访问上下文对象MeowvBlogDbContext
,继承自 AbpDbContext<T>
。然后重写OnModelCreating
方法。OnModelCreating
:定义EF Core 实体映射。先调用 base.OnModelCreating
让 abp 框架为我们实现基础映射,然后调用builder.Configure()
扩展方法来配置应用程序的实体。当然也可以不用扩展,直接写在里面,这样一大坨显得不好看而已。
在abp框架中,可以使用 [ConnectionStringName]
Attribute 为我们的DbContext配置连接字符串名称。先加上,然后再在appsettings.json
中进行配置,因为之前集成了多个数据库,所以这里我们也配置多个连接字符串,与之对应。
本项目默认采用MySql,你可以选择任意你喜欢的。
//MeowvBlogDbContext.cs
using Microsoft.EntityFrameworkCore;
using Volo.Abp.Data;
using Volo.Abp.EntityFrameworkCore;namespace Meowv.Blog.EntityFrameworkCore
{[ConnectionStringName("MySql")]public class MeowvBlogDbContext : AbpDbContext<MeowvBlogDbContext>{public MeowvBlogDbContext(DbContextOptions<MeowvBlogDbContext> options) : base(options){}protected override void OnModelCreating(ModelBuilder modelBuilder){base.OnModelCreating(modelBuilder);modelBuilder.Configure();}}
}//appsettings.json
{"ConnectionStrings": {"Enable": "MySQL","MySql": "Server=localhost;User Id=root;Password=123456;Database=meowv_blog_tutorial","SqlServer": "","PostgreSql": "","Sqlite": ""}
}
然后新建我们的扩展类MeowvBlogDbContextModelCreatingExtensions.cs
和扩展方法Configure()
。注意,扩展方法是静态的,需加static
//MeowvBlogDbContextModelCreatingExtensions.cs
using Microsoft.EntityFrameworkCore;
using Volo.Abp;namespace Meowv.Blog.EntityFrameworkCore
{public static class MeowvBlogDbContextModelCreatingExtensions{public static void Configure(this ModelBuilder builder){Check.NotNull(builder, nameof(builder));...}}
}
完成上述操作后在我们的模块类MeowvBlogFrameworkCoreModule
中将DbContext注册到依赖注入,根据你配置的值使用不同的数据库。在.Domain
层创建配置文件访问类AppSettings.cs
//AppSettings.cs
using Microsoft.Extensions.Configuration;
using System.IO;namespace Meowv.Blog.Domain.Configurations
{/// <summary>/// appsettings.json配置文件数据读取类/// </summary>public class AppSettings{/// <summary>/// 配置文件的根节点/// </summary>private static readonly IConfigurationRoot _config;/// <summary>/// Constructor/// </summary>static AppSettings(){// 加载appsettings.json,并构建IConfigurationRootvar builder = new ConfigurationBuilder().SetBasePath(Directory.GetCurrentDirectory()).AddJsonFile("appsettings.json", true, true);_config = builder.Build();}/// <summary>/// EnableDb/// </summary>public static string EnableDb => _config["ConnectionStrings:Enable"];/// <summary>/// ConnectionStrings/// </summary>public static string ConnectionStrings => _config.GetConnectionString(EnableDb);}
}
获取配置文件内容比较容易,代码中有注释也很容易理解。
值得一提的是,ABP会自动为DbContext中的实体创建默认仓储. 需要在注册的时使用options添加AddDefaultRepositories()
。
默认情况下为每个实体创建一个仓储,如果想要为其他实体也创建仓储,可以将 includeAllEntities
设置为 true,然后就可以在服务中注入和使用 IRepository<TEntity>
或 IQueryableRepository<TEntity>
//MeowvBlogFrameworkCoreModule.cs
using Meowv.Blog.Domain;
using Meowv.Blog.Domain.Configurations;
using Microsoft.Extensions.DependencyInjection;
using Volo.Abp.EntityFrameworkCore;
using Volo.Abp.EntityFrameworkCore.MySQL;
using Volo.Abp.EntityFrameworkCore.PostgreSql;
using Volo.Abp.EntityFrameworkCore.Sqlite;
using Volo.Abp.EntityFrameworkCore.SqlServer;
using Volo.Abp.Modularity;namespace Meowv.Blog.EntityFrameworkCore
{[DependsOn(typeof(MeowvBlogDomainModule),typeof(AbpEntityFrameworkCoreModule),typeof(AbpEntityFrameworkCoreMySQLModule),typeof(AbpEntityFrameworkCoreSqlServerModule),typeof(AbpEntityFrameworkCorePostgreSqlModule),typeof(AbpEntityFrameworkCoreSqliteModule))]public class MeowvBlogFrameworkCoreModule : AbpModule{public override void ConfigureServices(ServiceConfigurationContext context){context.Services.AddAbpDbContext<MeowvBlogDbContext>(options =>{options.AddDefaultRepositories(includeAllEntities: true);});Configure<AbpDbContextOptions>(options =>{switch (AppSettings.EnableDb){case "MySQL":options.UseMySQL();break;case "SqlServer":options.UseSqlServer();break;case "PostgreSql":options.UsePostgreSql();break;case "Sqlite":options.UseSqlite();break;default:options.UseMySQL();break;}});}}
}
现在可以来初步设计博客所需表为:发表文章表(posts)、分类表(categories)、标签表(tags)、文章对应标签表(post_tags)、友情链接表(friendlinks)
在.Domain
层编写实体类,Post.cs、Category.cs、Tag.cs、PostTag.cs、FriendLink.cs。把主键设置为int型,直接继承Entity。关于这点可以参考ABP文档,https://docs.abp.io/zh-Hans/abp/latest/Entities
//Post.cs
using System;
using Volo.Abp.Domain.Entities;namespace Meowv.Blog.Domain.Blog
{/// <summary>/// Post/// </summary>public class Post : Entity<int>{/// <summary>/// 标题/// </summary>public string Title { get; set; }/// <summary>/// 作者/// </summary>public string Author { get; set; }/// <summary>/// 链接/// </summary>public string Url { get; set; }/// <summary>/// HTML/// </summary>public string Html { get; set; }/// <summary>/// Markdown/// </summary>public string Markdown { get; set; }/// <summary>/// 分类Id/// </summary>public int CategoryId { get; set; }/// <summary>/// 创建时间/// </summary>public DateTime CreationTime { get; set; }}
}//Category.cs
using Volo.Abp.Domain.Entities;namespace Meowv.Blog.Domain.Blog
{/// <summary>/// Category/// </summary>public class Category : Entity<int>{/// <summary>/// 分类名称/// </summary>public string CategoryName { get; set; }/// <summary>/// 展示名称/// </summary>public string DisplayName { get; set; }}
}//Tag.cs
using Volo.Abp.Domain.Entities;namespace Meowv.Blog.Domain.Blog
{/// <summary>/// Tag/// </summary>public class Tag : Entity<int>{/// <summary>/// 标签名称/// </summary>public string TagName { get; set; }/// <summary>/// 展示名称/// </summary>public string DisplayName { get; set; }}
}//PostTag.cs
using Volo.Abp.Domain.Entities;namespace Meowv.Blog.Domain.Blog
{/// <summary>/// PostTag/// </summary>public class PostTag : Entity<int>{/// <summary>/// 文章Id/// </summary>public int PostId { get; set; }/// <summary>/// 标签Id/// </summary>public int TagId { get; set; }}
}//FriendLink.cs
using Volo.Abp.Domain.Entities;namespace Meowv.Blog.Domain.Blog
{/// <summary>/// FriendLink/// </summary>public class FriendLink : Entity<int>{/// <summary>/// 标题/// </summary>public string Title { get; set; }/// <summary>/// 链接/// </summary>public string LinkUrl { get; set; }}
}
创建好实体类后,在MeowvBlogDbContext
添加DbSet属性
//MeowvBlogDbContext.cs
...[ConnectionStringName("MySql")]public class MeowvBlogDbContext : AbpDbContext<MeowvBlogDbContext>{public DbSet<Post> Posts { get; set; }public DbSet<Category> Categories { get; set; }public DbSet<Tag> Tags { get; set; }public DbSet<PostTag> PostTags { get; set; }public DbSet<FriendLink> FriendLinks { get; set; }...}
...
在.Domain.Shared
层添加全局常量类MeowvBlogConsts.cs
和表名常量类MeowvBlogDbConsts.cs
,搞一个表前缀的常量,我这里写的是meowv_
,大家可以随意。代表我们的表名都将以meowv_
开头。然后在MeowvBlogDbConsts
中将表名称定义好。
//MeowvBlogConsts.cs
namespace Meowv.Blog.Domain.Shared
{/// <summary>/// 全局常量/// </summary>public class MeowvBlogConsts{/// <summary>/// 数据库表前缀/// </summary>public const string DbTablePrefix = "meowv_";}
}//MeowvBlogDbConsts.cs
namespace Meowv.Blog.Domain.Shared
{public class MeowvBlogDbConsts{public static class DbTableName{public const string Posts = "Posts";public const string Categories = "Categories";public const string Tags = "Tags";public const string PostTags = "Post_Tags";public const string Friendlinks = "Friendlinks";}}
}
在Configure()
方法中配置表模型,包括表名、字段类型和长度等信息。对于下面代码不是很明白的可以看看微软的自定义 Code First 约定:https://docs.microsoft.com/zh-cn/ef/ef6/modeling/code-first/conventions/custom
//MeowvBlogDbContextModelCreatingExtensions.cs
using Meowv.Blog.Domain.Blog;
using Meowv.Blog.Domain.Shared;
using Microsoft.EntityFrameworkCore;
using Volo.Abp;
using static Meowv.Blog.Domain.Shared.MeowvBlogDbConsts;namespace Meowv.Blog.EntityFrameworkCore
{public static class MeowvBlogDbContextModelCreatingExtensions{public static void Configure(this ModelBuilder builder){Check.NotNull(builder, nameof(builder));builder.Entity<Post>(b =>{b.ToTable(MeowvBlogConsts.DbTablePrefix + DbTableName.Posts);b.HasKey(x => x.Id);b.Property(x => x.Title).HasMaxLength(200).IsRequired();b.Property(x => x.Author).HasMaxLength(10);b.Property(x => x.Url).HasMaxLength(100).IsRequired();b.Property(x => x.Html).HasColumnType("longtext").IsRequired();b.Property(x => x.Markdown).HasColumnType("longtext").IsRequired();b.Property(x => x.CategoryId).HasColumnType("int");b.Property(x => x.CreationTime).HasColumnType("datetime");});builder.Entity<Category>(b =>{b.ToTable(MeowvBlogConsts.DbTablePrefix + DbTableName.Categories);b.HasKey(x => x.Id);b.Property(x => x.CategoryName).HasMaxLength(50).IsRequired();b.Property(x => x.DisplayName).HasMaxLength(50).IsRequired();});builder.Entity<Tag>(b =>{b.ToTable(MeowvBlogConsts.DbTablePrefix + DbTableName.Tags);b.HasKey(x => x.Id);b.Property(x => x.TagName).HasMaxLength(50).IsRequired();b.Property(x => x.DisplayName).HasMaxLength(50).IsRequired();});builder.Entity<PostTag>(b =>{b.ToTable(MeowvBlogConsts.DbTablePrefix + DbTableName.PostTags);b.HasKey(x => x.Id);b.Property(x => x.PostId).HasColumnType("int").IsRequired();b.Property(x => x.TagId).HasColumnType("int").IsRequired();});builder.Entity<FriendLink>(b =>{b.ToTable(MeowvBlogConsts.DbTablePrefix + DbTableName.Friendlinks);b.HasKey(x => x.Id);b.Property(x => x.Title).HasMaxLength(20).IsRequired();b.Property(x => x.LinkUrl).HasMaxLength(100).IsRequired();});}}
}

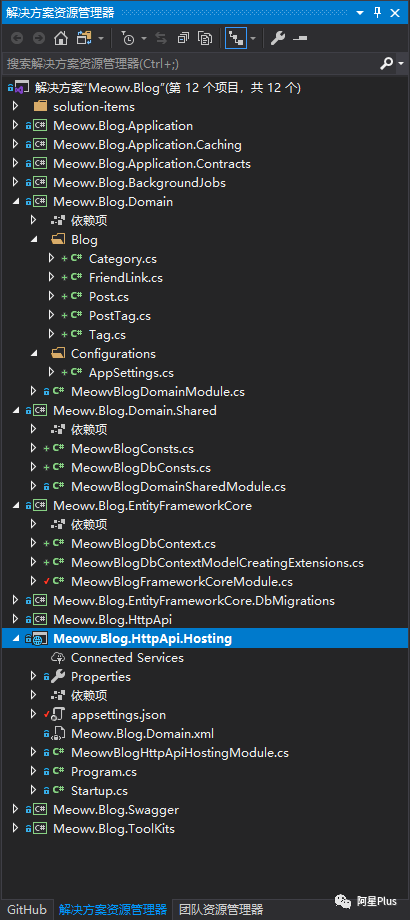

此时项目层级目录如下
代码优先
在.EntityFrameworkCore.DbMigrations
中新建模块类MeowvBlogEntityFrameworkCoreDbMigrationsModule.cs
、数据迁移上下文访问对象MeowvBlogMigrationsDbContext.cs
和一个Design Time Db Factory类MeowvBlogMigrationsDbContextFactory.cs
模块类依赖MeowvBlogFrameworkCoreModule
模块和AbpModule
。并在ConfigureServices
方法中添加上下文的依赖注入。
//MeowvBlogEntityFrameworkCoreDbMigrationsModule.cs
using Microsoft.Extensions.DependencyInjection;
using Volo.Abp.Modularity;namespace Meowv.Blog.EntityFrameworkCore.DbMigrations.EntityFrameworkCore
{[DependsOn(typeof(MeowvBlogFrameworkCoreModule))]public class MeowvBlogEntityFrameworkCoreDbMigrationsModule : AbpModule{public override void ConfigureServices(ServiceConfigurationContext context){context.Services.AddAbpDbContext<MeowvBlogMigrationsDbContext>();}}
}
MeowvBlogMigrationsDbContext
和MeowvBlogDbContext
没什么大的区别
//MeowvBlogMigrationsDbContext.cs
using Microsoft.EntityFrameworkCore;
using Volo.Abp.EntityFrameworkCore;namespace Meowv.Blog.EntityFrameworkCore.DbMigrations.EntityFrameworkCore
{public class MeowvBlogMigrationsDbContext : AbpDbContext<MeowvBlogMigrationsDbContext>{public MeowvBlogMigrationsDbContext(DbContextOptions<MeowvBlogMigrationsDbContext> options) : base(options){}protected override void OnModelCreating(ModelBuilder builder){base.OnModelCreating(builder);builder.Configure();}}
}
MeowvBlogMigrationsDbContextFactory
类主要是用来使用Code-First命令的(Add-Migration
和 Update-Database
...)
需要注意的地方,我们在这里要单独设置配置文件的连接字符串,将.HttpApi.Hosting
层的appsettings.json
复制一份到.EntityFrameworkCore.DbMigrations
,你用了什么数据库就配置什么数据库的连接字符串。
//appsettings.json
{"ConnectionStrings": {"Default": "Server=localhost;User Id=root;Password=123456;Database=meowv_blog"}
}//MeowvBlogMigrationsDbContextFactory.cs
using Microsoft.EntityFrameworkCore;
using Microsoft.EntityFrameworkCore.Design;
using Microsoft.Extensions.Configuration;
using System.IO;namespace Meowv.Blog.EntityFrameworkCore.DbMigrations.EntityFrameworkCore
{public class MeowvBlogMigrationsDbContextFactory : IDesignTimeDbContextFactory<MeowvBlogMigrationsDbContext>
{public MeowvBlogMigrationsDbContext CreateDbContext(string[] args){var configuration = BuildConfiguration();var builder = new DbContextOptionsBuilder<MeowvBlogMigrationsDbContext>().UseMySql(configuration.GetConnectionString("Default"));return new MeowvBlogMigrationsDbContext(builder.Options);}private static IConfigurationRoot BuildConfiguration(){var builder = new ConfigurationBuilder().SetBasePath(Directory.GetCurrentDirectory()).AddJsonFile("appsettings.json", optional: true, reloadOnChange: true);return builder.Build();}}
}
到这里差不多就结束了,默认数据库meowv_blog_tutorial
是不存在的,先去创建一个空的数据库。

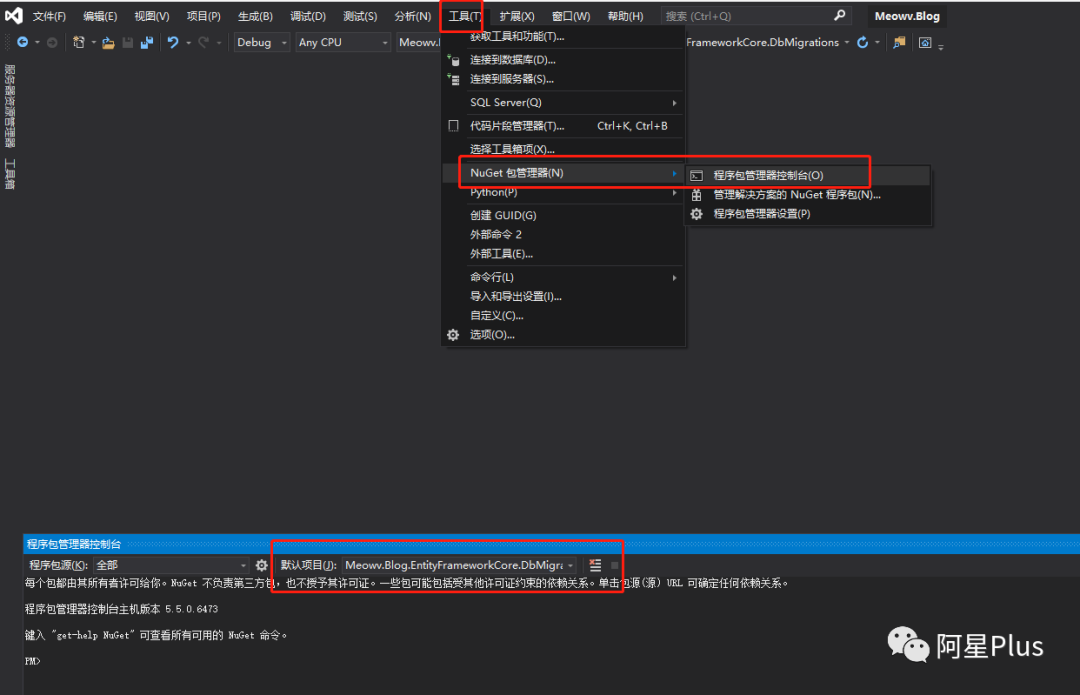

然后在Visual Studio中打开程序包管理控制台,将.EntityFrameworkCore.DbMigrations
设为启动项目。
键入命令:Add-Migration Initial
,会发现报错啦,错误信息如下:
Add-Migration : 无法将“Add-Migration”项识别为 cmdlet、函数、脚本文件或可运行程序的名称。请检查名称的拼写,如果包括路径,请确保路径正确,然后再试一次。
所在位置 行:1 字符: 1
+ Add-Migration Initial
+ ~~~~~~~~~~~~~+ CategoryInfo : ObjectNotFound: (Add-Migration:String) [], CommandNotFoundException+ FullyQualifiedErrorId : CommandNotFoundException
这是因为我们少添加了一个包,要使用代码优先方式迁移数据,必须添加,Microsoft.EntityFrameworkCore.Tools
。
紧接着直接用命令安装Install-Package Microsoft.EntityFrameworkCore.Tools
包,再试一遍

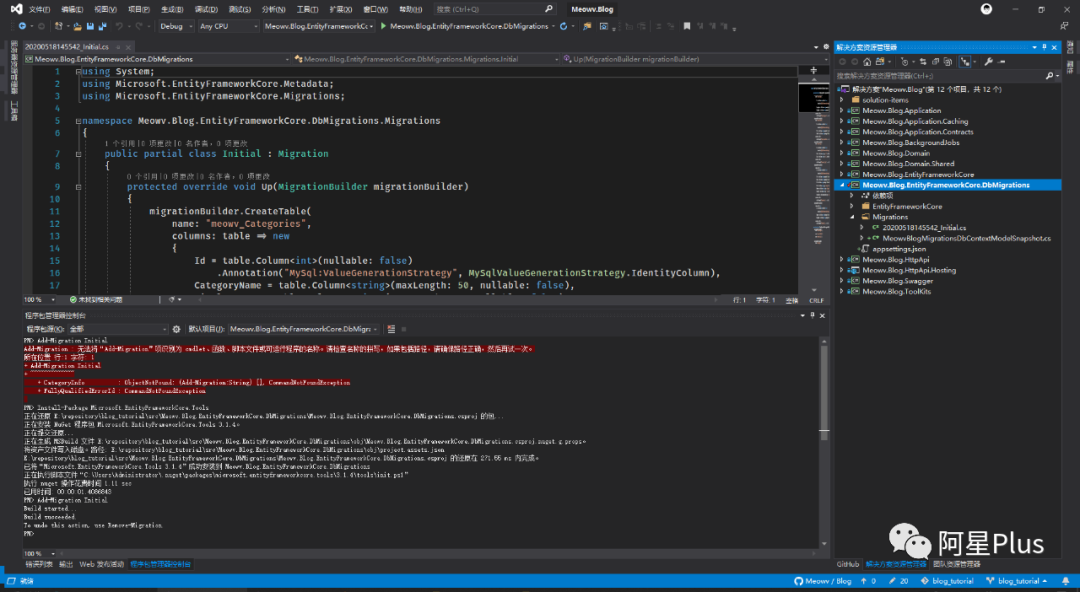

可以看到已经成功,并且生成了一个Migrations文件夹和对应的数据迁移文件。
最后输入更新命令:Update-Database
,然后打开数据瞅瞅。

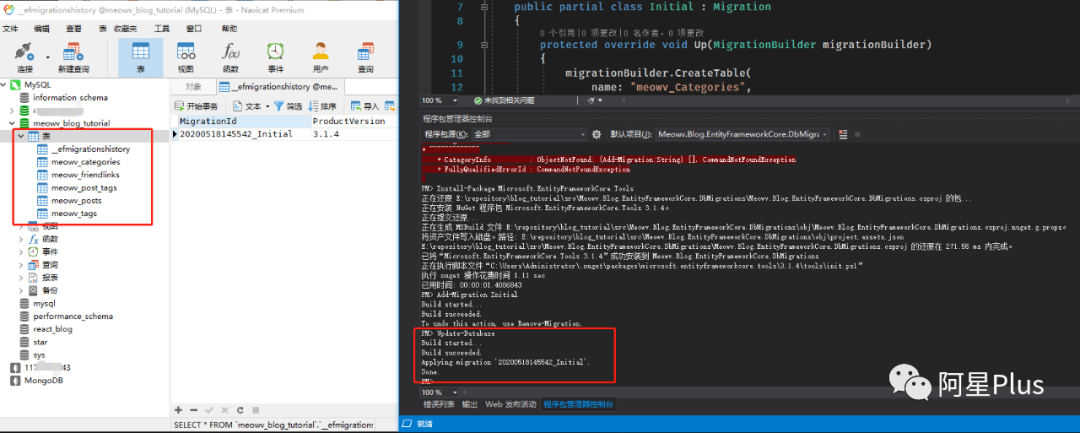

完美,成功创建了数据库表,而且命名也是我们想要的,字段类型也是ok的。__efmigrationshistory
表是用来记录迁移历史的,这个可以不用管。当我们后续如果想要修改添加表字段,新增表的时候,都可以使用这种方式来完成。

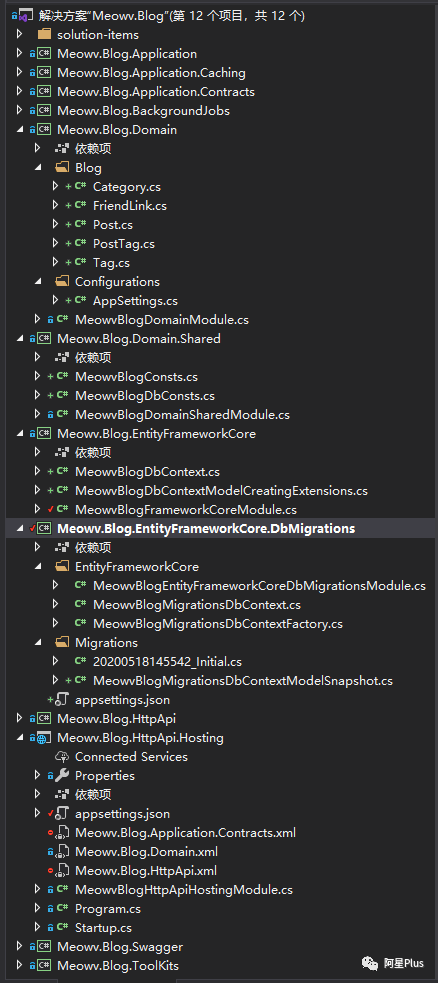

解决方案层级目录图,供参考
本篇使用Entity Framework Core完成数据访问和代码优先的方式创建数据库表,你学会了吗?????????????
开源地址:https://github.com/Meowv/Blog/tree/blog_tutorial
