需求:使用ASP.net Core Mvc开发公司内部web系统,给视图中js(css,image也可以)文件添加版本号避免缓存问题。
解决方法:利用Taghelper提供的标签(asp-append-version)可以实现
<script src="~/Scripts/Biz/VillageResource/XXXX.js" asp-append-version="true"></script>

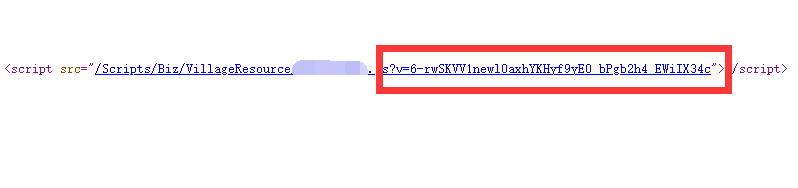

效果:
备注:刷新页面js版本号不会变化,直到变动js内容变化,版本号才会变化。下文根据源码,了解asp-append-version是如何实现的。
if (AppendVersion == true){EnsureFileVersionProvider();if (Href != null){var index = output.Attributes.IndexOfName(HrefAttributeName);var existingAttribute = output.Attributes[index];output.Attributes[index] = new TagHelperAttribute(existingAttribute.Name,FileVersionProvider.AddFileVersionToPath(ViewContext.HttpContext.Request.PathBase, Href),existingAttribute.ValueStyle);}}
private void EnsureFileVersionProvider(){if (FileVersionProvider == null){FileVersionProvider = ViewContext.HttpContext.RequestServices.GetRequiredService<IFileVersionProvider>();}}
解析IFileVersionProvider的实现,然后调用AddFileVersionToPath方法添加版本号,AddFileVersionToPath源码如下:
public string AddFileVersionToPath(PathString requestPathBase, string path){if (path == null){throw new ArgumentNullException(nameof(path));}var resolvedPath = path;var queryStringOrFragmentStartIndex = path.IndexOfAny(QueryStringAndFragmentTokens);if (queryStringOrFragmentStartIndex != -1){resolvedPath = path.Substring(0, queryStringOrFragmentStartIndex);}if (Uri.TryCreate(resolvedPath, UriKind.Absolute, out var uri) && !uri.IsFile){// Don't append version if the path is absolute.return path;}if (Cache.TryGetValue(path, out string value)){return value;}var cacheEntryOptions = new MemoryCacheEntryOptions();cacheEntryOptions.AddExpirationToken(FileProvider.Watch(resolvedPath));var fileInfo = FileProvider.GetFileInfo(resolvedPath);if (!fileInfo.Exists &&requestPathBase.HasValue &&resolvedPath.StartsWith(requestPathBase.Value, StringComparison.OrdinalIgnoreCase)){var requestPathBaseRelativePath = resolvedPath.Substring(requestPathBase.Value.Length);cacheEntryOptions.AddExpirationToken(FileProvider.Watch(requestPathBaseRelativePath));fileInfo = FileProvider.GetFileInfo(requestPathBaseRelativePath);}if (fileInfo.Exists){value = QueryHelpers.AddQueryString(path, VersionKey, GetHashForFile(fileInfo));}else{// if the file is not in the current server.value = path;}cacheEntryOptions.SetSize(value.Length * sizeof(char));value = Cache.Set(path, value, cacheEntryOptions);return value;}private static string GetHashForFile(IFileInfo fileInfo){using (var sha256 = CryptographyAlgorithms.CreateSHA256()){using (var readStream = fileInfo.CreateReadStream()){var hash = sha256.ComputeHash(readStream);return WebEncoders.Base64UrlEncode(hash);}}}
通过AddFileVersionToPath源码可以弄明白:
js版本号 如何实现的?
在GetHashForFile方法,根据文件的内容利用SHA256算法得到其hash值,然后通过url编码得到js的版本号如:?v=b_XmH4_MtWTW4959ESAEqaO3-Tqh9QSlrJgwrQ1YplA
为什么更改了js文件内容,版本号会改变?
第一次得到版本号,会放入缓存中( value = Cache.Set(path, value, cacheEntryOptions);),同时缓存添加过期条件,判断依据文件是否发生变化( cacheEntryOptions.AddExpirationToken(FileProvider.Watch(requestPathBaseRelativePath));),否-直接或从缓存中获取。是-调用GetHashForFile方法重新生成。
动手添加个获取版本号的扩展方法
public static class HttpContextExtends{public static string AddFileVersionToPath(this HttpContext context, string path){return context.RequestServices.GetRequiredService<IFileVersionProvider>().AddFileVersionToPath(context.Request.PathBase, path);}}
view中使用
@p pageScript
{<script src=@Context.AddFileVersionToPath("/Scripts/Common/DataEnum.js")></script>

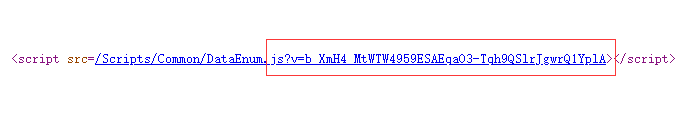

效果
