为 CefSharp 应用内置 C++ 运行环境并启用 AnyCPU 支持

一个 CefSharp 应用程序要想正确运行，有两个必要条件：

.NET Framework 4.5.2
VC++ 2015

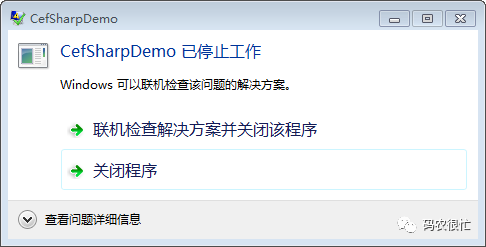

在部署 CefSharp 应用时经常会遇到因为没有 VC++ 2015 而无法运行的问题：

通过事件查看器，可以观察到一个类型为：System.IO.FileNotFoundException 的异常。

检测 VC++ 2015 运行环境是否安装。

我们可以使用以下 C# 代码来检测本机上是否已经部署了 VC++ 2015 运行环境：

public static bool IsVc2015Installed(){var dependenciesPath = @"SOFTWARE\Classes\Installer\Dependencies";var plat = Environment.Is64BitProcess ? "x64" : "x86";using (var dependencies = Registry.LocalMachine.OpenSubKey(dependenciesPath)){if (dependencies == null){return false;}foreach (var subKeyName in dependencies.GetSubKeyNames().Where(n =>!n.ToLower().Contains("dotnet") && !n.ToLower().Contains("microsoft"))){using (var subDir = Registry.LocalMachine.OpenSubKey(dependenciesPath + "\\" + subKeyName)){if (subDir == null){continue;}var value = subDir.GetValue("DisplayName")?.ToString() ?? null;if (string.IsNullOrEmpty(value)){continue;}if (Regex.IsMatch(value, $@"C\+\+ 2015.*\({plat}\)")) //here u can specify your version.{return true;}}}}return false;}

内置 VC++ 2015 运行时文件

VC++ 2015 运行环境是可以通过 XCopy 部署的。即：如果我们的程序需要 VC++ 2015 运行环境，仅需将 VC++ 2015 的全部文件复制到应用程序目录即可。事实上，有很多商业软件也是这么做的，比如：Navicat 。应用程序目录下一系列 “api-ms-win” 开头的 DLL 文件就是运行时文件。

当我们的 CefSharp 的目标平台仅为 x86 或 x64 ，内置 VC++ 2015 运行时仅需将对应的文件复制到输出目录即可。

如果要启用 AnyCPU 支持，我们仍需为主程序装载 VC++ 2015 运行时。

启用 AnyCPU 支持

以上一篇让 CefSharp.WinForms 应用程序同时支持32位（x86）和64位（x64）的解决方案的代码为模板，在 Program 文件中增加 _dllLoaded 变量来保存 VC++ 2015 环境是否已经具备。在 Program 类型的静态构造函数中调用 IsVc2015Installed 函数来确认是否已经安装了 VC++ 2015 环境，并将结果赋值给 _dllLoaded 变量。这代表着，如果本机已经安装过 VC++ 2015 运行环境，则程序内置的环境将不会被加载。

可以使用以下 Windows API 加载非托管类库：

[DllImport("kernel32.dll")]private static extern IntPtr LoadLibrary(string lpFileName);

声明静态的只读字符串数组变量 DllList 用于保存 VC++ 2015 的全部文件名：

private static readonly string[] DllList ={"api-ms-win-core-console-l1-1-0.dll", "api-ms-win-core-datetime-l1-1-0.dll","api-ms-win-core-debug-l1-1-0.dll", "api-ms-win-core-errorhandling-l1-1-0.dll","api-ms-win-core-file-l1-1-0.dll", "api-ms-win-core-file-l1-2-0.dll","api-ms-win-core-file-l2-1-0.dll", "api-ms-win-core-handle-l1-1-0.dll","api-ms-win-core-heap-l1-1-0.dll", "api-ms-win-core-interlocked-l1-1-0.dll","api-ms-win-core-libraryloader-l1-1-0.dll", "api-ms-win-core-localization-l1-2-0.dll","api-ms-win-core-memory-l1-1-0.dll", "api-ms-win-core-namedpipe-l1-1-0.dll","api-ms-win-core-processenvironment-l1-1-0.dll", "api-ms-win-core-processthreads-l1-1-0.dll","api-ms-win-core-processthreads-l1-1-1.dll", "api-ms-win-core-profile-l1-1-0.dll","api-ms-win-core-rtlsupport-l1-1-0.dll", "api-ms-win-core-string-l1-1-0.dll","api-ms-win-core-synch-l1-1-0.dll", "api-ms-win-core-synch-l1-2-0.dll","api-ms-win-core-sysinfo-l1-1-0.dll", "api-ms-win-core-timezone-l1-1-0.dll","api-ms-win-core-util-l1-1-0.dll", "api-ms-win-crt-conio-l1-1-0.dll","api-ms-win-crt-convert-l1-1-0.dll", "api-ms-win-crt-environment-l1-1-0.dll","api-ms-win-crt-filesystem-l1-1-0.dll", "api-ms-win-crt-heap-l1-1-0.dll","api-ms-win-crt-locale-l1-1-0.dll", "api-ms-win-crt-math-l1-1-0.dll","api-ms-win-crt-multibyte-l1-1-0.dll", "api-ms-win-crt-private-l1-1-0.dll","api-ms-win-crt-process-l1-1-0.dll", "api-ms-win-crt-runtime-l1-1-0.dll","api-ms-win-crt-stdio-l1-1-0.dll", "api-ms-win-crt-string-l1-1-0.dll","api-ms-win-crt-time-l1-1-0.dll", "api-ms-win-crt-utility-l1-1-0.dll","ucrtbase.dll"};

新增 CheckDll 方法，根据运行环境加载对应的 VC++ 2015 运行时：

private static void CheckDll() // 检查浏览器的DLL是否载入{if (_dllLoaded){return;}var dir = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, Environment.Is64BitProcess ? "x64" : "x86");foreach (var fname in DllList){try{var path = Path.Combine(dir, fname);if (File.Exists(path)){LoadLibrary(path);}}catch{}}_dllLoaded = true;}

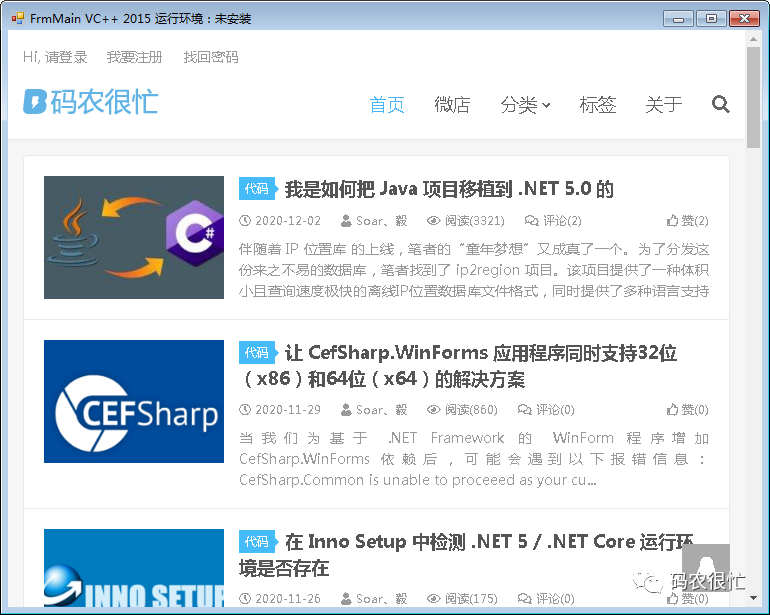

注意：CheckDll 需要在 Resolver 方法中被调用。完成以上操作后，CefSharp程序就可以在未安装 VC++ 2015 环境的机器上成功运行了：
