1、不废话,先爆照看效果
2、Decoration介绍
Flutter的Decoration可以设置:背景色 背景图 边框 圆角 阴影 渐变色 的等属性,有点像android里面的shape,Decoration 是基类,它的子类有下面这些
- BoxDecoration:实现边框、圆角、阴影、形状、渐变、背景图像
- ShapeDecoration:实现四边分别指定颜色和宽度、底部线、矩形边色、圆形边色、体育场(竖向椭圆)、 角形(八边角)边色
- FlutterLogoDecoration:Flutter图片
- UnderlineTabindicator:下划线
这里先介绍常用的 BoxDecoration,构造方法
const BoxDecoration({this.color,//背景色this.image,//图片this.border,//描边this.borderRadius,//圆角大小this.boxShadow,//阴影this.gradient,//渐变色this.backgroundBlendMode,//图像混合模式this.shape = BoxShape.rectangle,//形状,BoxShape.circle和borderRadius不能同时使用
})
boxShadow 阴影
- color - 阴影颜色
- offset - 阴影相偏移量
- blurRadius - 高斯模糊数值
- spreadRadius - 阴影膨胀量,这个值我是真不知有啥用,没场景啊,一般不写这个值
gradient渐变
支持2种渐变:LinearGradient线性渐变 和 RadialGradient扫描渐变
- LinearGradient :
- begin - 渐变开始的位置
- end - 渐变结束的位置
- colors - 渐变颜色,是数组
- stops - 值列表,装有0.0到1.0的数值
- tileMode - 平铺模式
shape形状
- rectangle是矩形,BoxShape.circle是圆形,BoxShape.circle和borderRadius不能一起使用
3、代码测试

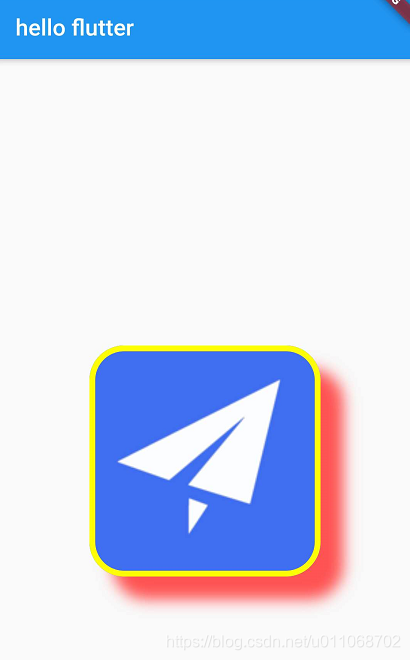

效果1测试代码
@overrideWidget build(BuildContext context) {return MaterialApp(title: 'open url',home: Scaffold(appBar: AppBar(// Here we take the value from the MyHomePage object that was created by// the App.build method, and use it to set our appbar title.title: Text('hello flutter'),),body: Center(child: DecoratedBox(
// padding: EdgeInsets.all(16),
// padding: EdgeInsets.fromLTRB(10, 20, 30, 40),
// padding: EdgeInsets.only(left: 10, right: 30),decoration: BoxDecoration(// 背景色color: Colors.lightBlueAccent,// 边框,border: Border.all(color: Colors.yellowAccent, style: BorderStyle.solid, width: 5),// 背景图image: new DecorationImage(image: new NetworkImage('https://ss0.bdstatic.com/70cFvHSh_Q1YnxGkpoWK1HF6hhy/it/u=1484037605,2864708693&fm=11&gp=0.jpg'),fit: BoxFit.cover),borderRadius: BorderRadius.all(Radius.circular(30)),boxShadow:[BoxShadow(color: Colors.redAccent,offset: Offset(20, 20),blurRadius: 10,),]),child: Container(height: 200,width: 200,),),),),);}
}
效果2测试代码
@overrideWidget build(BuildContext context) {return MaterialApp(title: 'open url',home: Scaffold(appBar: AppBar(// Here we take the value from the MyHomePage object that was created by// the App.build method, and use it to set our appbar title.title: Text('hello flutter'),),body: Center(child: DecoratedBox(
// padding: EdgeInsets.all(16),
// padding: EdgeInsets.fromLTRB(10, 20, 30, 40),
// padding: EdgeInsets.only(left: 10, right: 30),decoration: BoxDecoration(// 背景色gradient: LinearGradient(colors:[Colors.blue, Colors.green]), //背景渐变color: Colors.lightBlueAccent,// 背景图borderRadius: BorderRadius.all(Radius.circular(3)),boxShadow: [ //阴影BoxShadow(color:Colors.black54,offset: Offset(2.0,2.0),blurRadius: 4.0)]),child: Padding(padding: EdgeInsets.symmetric(horizontal: 80.0, vertical: 18.0),child: Text("chenyu", style: TextStyle(color: Colors.white),),)),),),);}
}

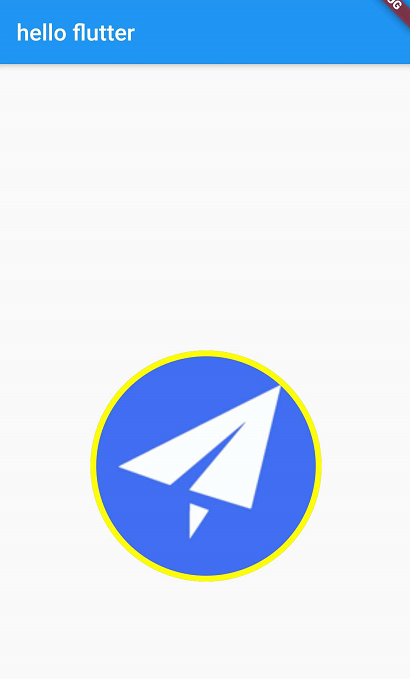

效果3测试代码
@overrideWidget build(BuildContext context) {return MaterialApp(title: 'open url',home: Scaffold(appBar: AppBar(// Here we take the value from the MyHomePage object that was created by// the App.build method, and use it to set our appbar title.title: Text('hello flutter'),),body: Center(child: DecoratedBox(
// padding: EdgeInsets.all(16),
// padding: EdgeInsets.fromLTRB(10, 20, 30, 40),
// padding: EdgeInsets.only(left: 10, right: 30),decoration: BoxDecoration(// 背景色border: Border.all(color: Colors.yellowAccent, style: BorderStyle.solid, width: 5),// 背景图image: new DecorationImage(image: new NetworkImage('https://ss0.bdstatic.com/70cFvHSh_Q1YnxGkpoWK1HF6hhy/it/u=1484037605,2864708693&fm=11&gp=0.jpg'),fit: BoxFit.cover),shape: BoxShape.circle,),child: Container(width: 200,height: 200,),),),),);}
}
