注意：如果后端有contextPath，如/app，那么前端访问的url就是ip:port/app/ws
后端实现步骤
- 添加Spring Boot WebSocket依赖
- 配置WebSocket端点和消息代理
- 创建控制器，使用SimpMessagingTemplate发送消息
前端实现步骤
- 安装sockjs-client和stompjs库
- 封装WebSocket连接工具类
- 在Vue组件中建立连接，订阅主题
详细实现步骤
后端（Spring Boot）实现步骤
1. 添加依赖
<!-- pom.xml -->
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-websocket</artifactId>
</dependency>2. 配置WebSocket
@Configuration
@EnableWebSocketMessageBroker
public class WebSocketConfig implements WebSocketMessageBrokerConfigurer {@Overridepublic void registerStompEndpoints(StompEndpointRegistry registry) {// 注册WebSocket端点，前端连接此地址registry.addEndpoint("/ws").setAllowedOriginPatterns("*") // 解决跨域问题.withSockJS(); // 支持SockJS}@Overridepublic void configureMessageBroker(MessageBrokerRegistry registry) {// 客户端订阅的主题前缀registry.enableSimpleBroker("/topic");}
}3. 发送消息的Controller
@RestController
public class MessageController {@Autowiredprivate SimpMessagingTemplate messagingTemplate;// 发送消息到所有客户端@GetMapping("/send")public void sendToAll(String message) {messagingTemplate.convertAndSend("/topic/messages", message);}}前端（Vue）实现步骤
1. 安装依赖
npm install sockjs-client stompjs2. 封装WebSocket工具类
// src/utils/websocket.js
import SockJS from 'sockjs-client';
import Stomp from 'stompjs';
let stompClient = null;
export function connect(url,callback) {const socket = new SockJS(url);stompClient = Stomp.over(socket);stompClient.connect({}, () => {stompClient.subscribe('/topic/messages', (message) => {callback(message.body)});});
}
export function disconnect() {if (stompClient) {stompClient.disconnect();}
}3. Vue组件集成
<template><div><div>收到消息: {{ receivedMsg }}</div></div>
</template>
<script>
import { connect, disconnect } from '@/ws/websocket';export default {data() {return {inputMsg: '',receivedMsg: ''};},mounted() {connect('http://localhost:8088/ws',(msg)=>{this.receivedMsg = msg;});},beforeDestroy() {disconnect();},methods: {}
};
</script>测试
向指定客户端发送消息
后端
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-websocket</artifactId></dependency>package com.config;import org.springframework.context.annotation.Configuration;
import org.springframework.messaging.simp.config.MessageBrokerRegistry;
import org.springframework.web.socket.config.annotation.EnableWebSocketMessageBroker;
import org.springframework.web.socket.config.annotation.StompEndpointRegistry;
import org.springframework.web.socket.config.annotation.WebSocketMessageBrokerConfigurer;/*** @author cyz*/
@Configuration
@EnableWebSocketMessageBroker
public class WebSocketConfig implements WebSocketMessageBrokerConfigurer {@Overridepublic void registerStompEndpoints(StompEndpointRegistry registry) {// 客户端连接的端点（WebSocket URL）registry.addEndpoint("/ws")// 允许所有来源（根据需求调整）.setAllowedOrigins("*")// 支持 SockJS 降级（兼容不支持 WebSocket 的浏览器）.withSockJS();}@Overridepublic void configureMessageBroker(MessageBrokerRegistry registry) {// 客户端订阅的地址前缀（STOMP 主题）registry.enableSimpleBroker("/portCheckProgress");}
}
package com;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.messaging.simp.SimpMessagingTemplate;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
/*** @author cyz* @since 2025/4/1 下午5:15*/
@RestController
public class MessageController {@Autowiredprivate SimpMessagingTemplate messagingTemplate;@GetMapping("/send-to-user")public void sendToUser(@RequestParam String userCode, @RequestParam String message) {String destination = "/portCheckProgress/info/"+userCode;messagingTemplate.convertAndSend(destination, message);}
}
package com;import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;/*** @author cyz* @since 2025/4/1 下午5:12*/
@SpringBootApplication
public class Application {public static void main(String[] args) {SpringApplication.run(Application.class, args);}
}
前端
// src/utils/websocket.js
import SockJS from 'sockjs-client';
import Stomp from 'stompjs';
let stompClient = null;
export function connect(url,userCode,callback) {const socket = new SockJS(url);stompClient = Stomp.over(socket);stompClient.connect({}, () => {stompClient.subscribe('/portCheckProgress/info/'+userCode, (message) => {callback(message.body)});});
}
export function disconnect() {if (stompClient) {stompClient.disconnect();}
}<template><div><div>收到消息: {{ receivedMsg }}</div></div>
</template>
<script>
import { connect, disconnect } from '@/ws/websocket';export default {data() {return {inputMsg: '',receivedMsg: ''};},mounted() {var split = location.href.split("?userCode=");var userCode = split[1]connect('http://localhost:8088/ws',userCode,(msg)=>{this.receivedMsg = msg;});},beforeDestroy() {disconnect();},methods: {}
};
</script>测试
向2中发送消息
向3中发送消息
后端是https
可以在后端多启动一个端口，然后重定向到https端口即可，如下
package com.config;import org.apache.catalina.connector.Connector;
import org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory;
import org.springframework.boot.web.servlet.server.ServletWebServerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;/*** @author cyz*/
@Configuration
public class HttpAndHttpsConfig {@Beanpublic ServletWebServerFactory servletContainer() {TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory();tomcat.addAdditionalTomcatConnectors(createHttpConnector());return tomcat;}private Connector createHttpConnector() {Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");connector.setScheme("http");connector.setSecure(false);// 与HTTPS端口一致connector.setPort(8087);// 重定向到HTTPS端口connector.setRedirectPort(8088); return connector;}

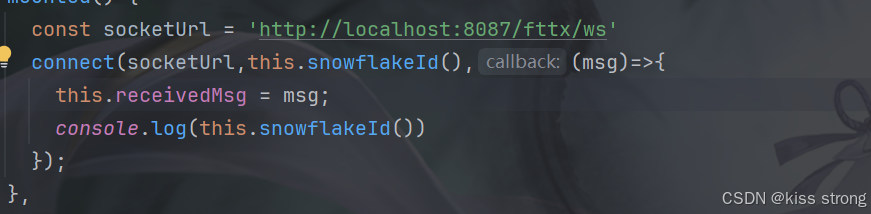

}前端写的是http协议及其端口
